3 weeks 2 hours ago #108 by Sébastien
Script ? was created by Sébastien

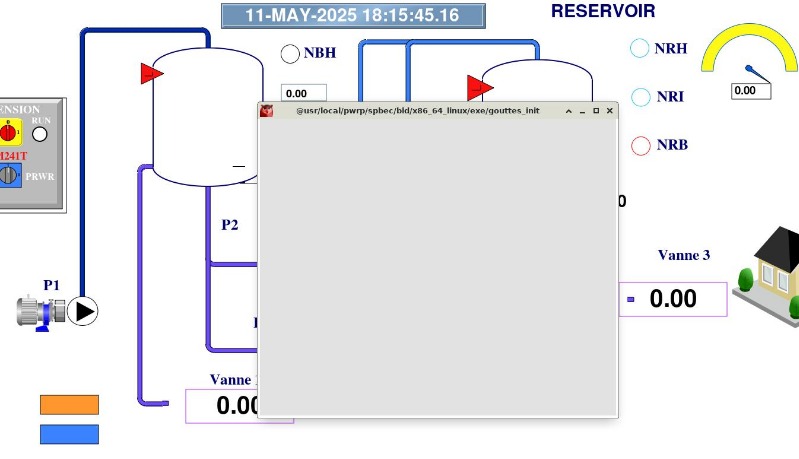

Hello Claes, I would like to know how to insert a GE or Python3 script to draw on my pojet.pwg directly in GE? (open graph @"usr/local/pwrp/spbec/bld/x86_64_linux/exe/gouttes_init")
  At the moment it opens another window? on my project.pwg! Thank you

Please Log in or Create an account to join the conversation.

More
2 weeks 6 days ago #109 by claes
Replied by claes on topic Script ?
Hi Seb,

There is dynamic or action to execute a ge script. The current script dynamics only handles xtt scripts although it would b an interesting option to also handle ge scripts.

/Claes

Please Log in or Create an account to join the conversation.

More
2 weeks 6 days ago #110 by Sébastien
Replied by Sébastien on topic Script ?
Hi Claes,

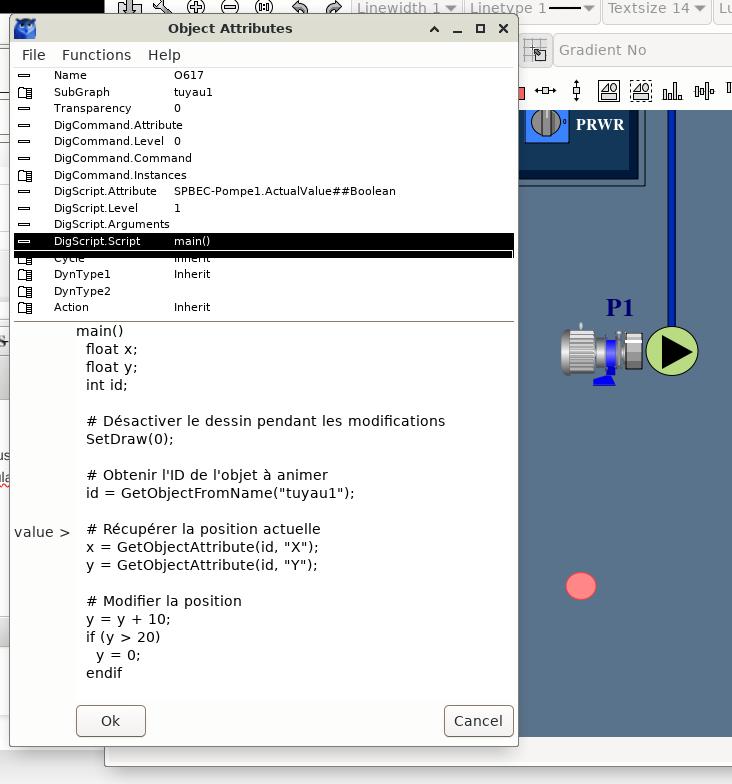

The goal is to create a script that simulates water circulation with adjustable speed and viscosity to animate the GE graph. Under python3 I already have a simulation with created drops that animate the water circulation. Here under proview the goal is to create a circle that circulates in the same way as you did in the Demo Queue to animate the water circulation. So how do I create a script that manipulates a GE object?
Thank You   /SEB
