Volume BaseComponent
Attributes: Runtime \| Development \| System \| Template \| Detail C Binding: Struct \| Class \| Code ClassTree	INDEX NO INDEX

 Plc simulation object to BaseMotorAggr.

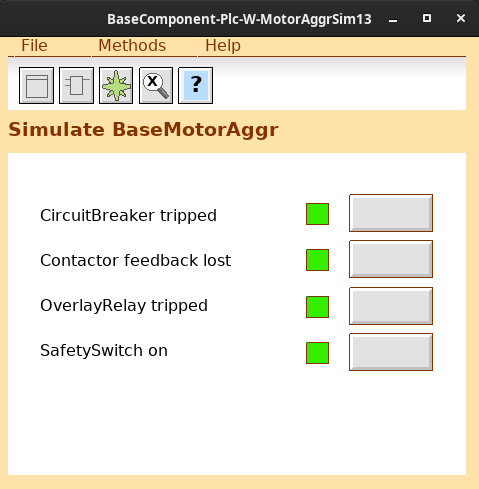

Object Graph


 Connect the function object to an object of class or subclass of
 BaseMotorAggr.

See also

RtBody attributes pwr_sClass_BaseMotorAggrSim
AttrRef	PlcConnect	The main object connected to this function object.
Boolean	OpToggleCircuitBreaker
Boolean	OpToggleSafetySwitch
Boolean	OpToggleOverloadRelay
Boolean	OpResetContactorFeedback
Boolean	IndCircuitBreakerTripped
Boolean	IndSafetySwitchOn
Boolean	IndOverloadRelayTripped
Boolean	IndContactorFeedback

DevBody attributes
pwrs:Class-$PlcNode	PlcNode

GraphPlcNode
object_type	11
parameters[0]	0
parameters[1]	9
parameters[2]	0
parameters[3]	0
subwindows	1
subwindow_class[0]	pwrb:Class-WindowPlc
graphmethod	0 (standard, individual attributes)
graphindex	0
default_mask[0]	0
default_mask[1]	0
segname_annotation	1
compmethod	58
compindex	0
tracemethod	0
traceindex	0
connectmethod	26
executeordermethod	2
objname	MotorAggrSim
graphname	MotorAggrSim

Template Object

Attributes detail

 The main object connected to this object.
 This attribute is set when the function object is connected from
 the plc editor by the connect function.

OpToggleCircuitBreaker Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody

OpToggleSafetySwitch Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody

OpToggleOverloadRelay Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody

OpResetContactorFeedback Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody

IndCircuitBreakerTripped Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody

IndOverloadRelayTripped Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody

IndContactorFeedback Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody
