| Volume OtherIO | |
| Attributes: Runtime | Development | System | Template | Detail C Binding: Struct | Class  ClassTree | INDEX NO INDEX |
Class Epl_CnServerModule
|
||
|---|---|---|
| Redaktör | je | |
| Version | 1.0 | |
| Modified | 08-JUL-2013 14:47:28.97 | |

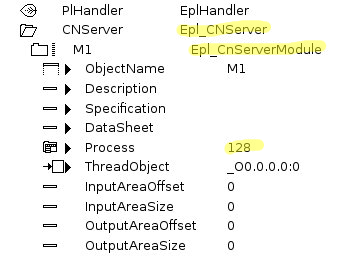

The server module configures a CN module where ProviewR acts as a CN. The Epl_CnServerModule object is placed as a child to an Epl_CNServer object and is the father of channel objects that defines the input and output areas for the module.Example Epl_CNServerModule settings

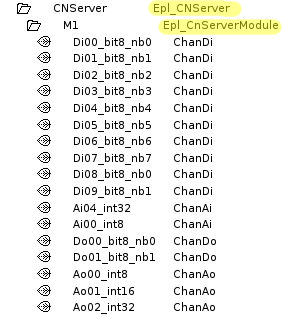

Example CN Server and Module with channels

See also
| Template Object | |
|---|---|
| Process | 128 |
| Description Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | String80 | |
| Flags | ||
| Kropp | RtBody | |
| Specification Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | String80 | |
| Flags | ||
| Kropp | RtBody | |
| DataSheet Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | URL | |
| Flags | ||
| Kropp | RtBody | |
| Process Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | IoProcessMask | |
| Flags | ||
| Kropp | RtBody | |
| ThreadObject Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Objid | |
| Flags | ||
| Kropp | RtBody | |
| InputAreaOffset Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | State|Noedit | |
| Kropp | RtBody | |
| InputAreaSize Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | State|Noedit | |
| Kropp | RtBody | |
| OutputAreaOffset Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | State|Noedit | |
| Kropp | RtBody | |
| OutputAreaSize Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | State|Noedit | |
| Kropp | RtBody | |
