Ethernet Powerlink Controlled Node (CN).

 This object configurates a CN in a Powerlink circuit where ProviewR acts as the
 managing node (MN). The Epl_CN is placed as child to an Epl_MN object and the
 modules of the CN are configured with Epl_Module objects placed as children to
 the Epl_CN.

 See class Epl_MN fore more information about the Powerlink configuration.

 You will also find a case study in the documentation for object ABB_ACS880_Epl
 and B&R I/O X20 system object BR_PowerSupply_EplModule.

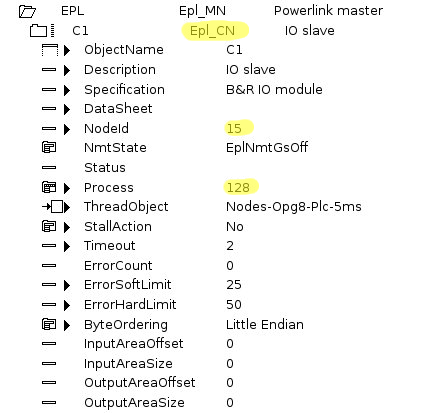

Example CN settings

Example Configuration of ABB_ACS880_Epl

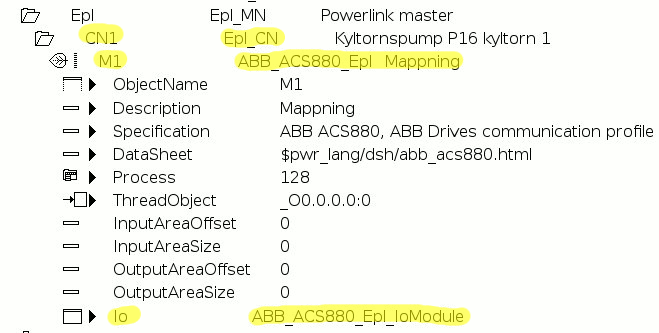

 The figure below shows an example with an ABB ACS880 frequency converter.
 Below the Epl_CN object a special EPL module object is used containing
 the channels in the Io attribute of class ABB_ACS880_Epl_IoModule.

 The Epl_CN object is used when ProviewR act as a managing node. In circuits where
 ProviewR acts as a controlled node the Epl_CNServer object is used instead.
