Class DpDistribute
Version 1.0
Modified 15-JAN-2025 13:23:37.00
Kod rt_plc_data.c

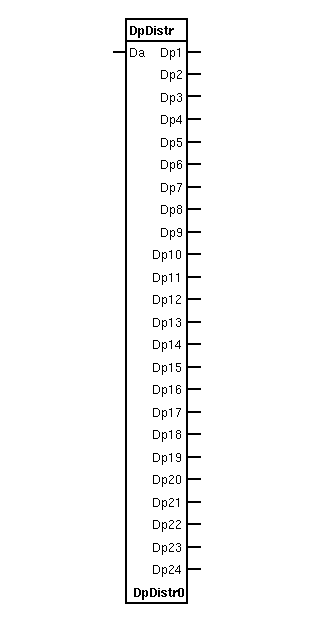

Distribuerar en vektor med boolean till ett antal attribut av typen Boolean (max
24 st).

Vektorn deklareras i en DataArithm, och adressen till vektorn läggs ut
på en datautgång, till vilken dataingången på DpDistribute-objektet kopplas.
Elementen i vektorn läggs ut på dp-utgångarna i DpDistribute-objektet.
Normalt kan endast 6 digital attribut hanteras i en DataArithm, men genom att
utnyttja DpDistribute kan upp till 96 st hanteras.

I MaxIndex ska antalet utgångar som används i DpDistribute objektet anges.

Vektorn ska vara en static deklarerad array av pwr_tBoolean med antal element
större eller lika med MaxIndex. I fösta hand ska typen nmps_sDpDistr
användas, en array av pwr_tBoolean med 24 element som finns deklarerad i
ssab_inc:rs_plc_macro_nmps.h.

Exempel


Här följer ett exempel på koden i en DataArithm som har
DpDistribute objektet kopplat till ODa1 utgången.

static nmps_sDpDistr vect;
int i;

ODa1 = vect;
for ( i = 0; i < 24; i++)
{
  if (d1)
    vect[i] = 1;
  else
    vect[i] = 0;
}
