| Volume BaseComponent | |
| Attributes: Runtime | Development | System | Template | Detail C Binding: Struct | Class | Code ClassTree | INDEX NO INDEX |
|
Class CompOnOffBurner
|
||
|---|---|---|
| Version | 1.0 | |
| Modified | 25-JAN-2007 11:42:06.86 | |
| Kod | rt_plc_bcomp.c | |

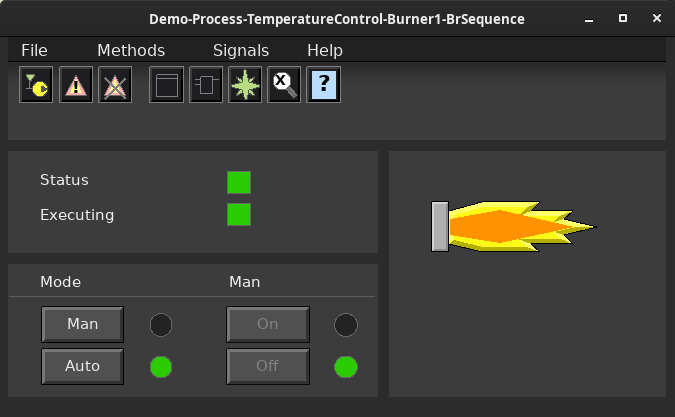

Burner on/off sequence control, burner unit. Calculates the on/off state for a burner in a zone. Works together with the CompOnOffZone object.Object Graph
Plc coding
For plc coding the function object CompOnOffBurnerFo is used.
Create a function object in the plc editor and connect it to the current object with the connect function.See also
| RtBody attributes pwr_sClass_CompOnOffBurner | |||
|---|---|---|---|
| String80 | Description | Optional description of the component. | |
| UInt32 | Number | Number decides the turn on time for the burner in the time cycle of the zone. 0 <= Number <= Number of burners in the zone. |
|
| Float32 | BrTime | Time since last on/off switch. | |
| Float32 | PulseTime | ||
| Float32 | OffCnt | ||
| Boolean | Status | Calculated burner state. | |
| Boolean | OnDetected | ||
| Float32 | TrendStatus | Value to be used in a trend together with the other burners in the zone. |
|
| Boolean | PulseOn | ||
| Boolean | OpMan | The operator is allowed to operate in manual mode. | |
| Boolean | ManMode | Manual mode is selected. | |
| Boolean | ManStatus | Selected burner state in manual mode. | |
| Boolean | Executing | Burner sequence control is active. | |
| AttrRef | PlcConnect | The plc function object connected to this object. | |
| Template Object |
|---|
| Description Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | String80 | |
| Flags | ||
| Kropp | RtBody | |
Optional description of the component.
| Number Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ReduTransfer | |
| Kropp | RtBody | |
Number decides the turn on time for the burner in the time cycle of the zone. 0 <= Number <= Number of burners in the zone.
| BrTime Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Float32 | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
Time since last on/off switch.
| PulseTime Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Float32 | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
| OffCnt Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Float32 | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
| Status Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
Calculated burner state.
| OnDetected Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
| TrendStatus Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Float32 | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
Value to be used in a trend together with the other burners in the zone.
| PulseOn Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
| OpMan Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ReduTransfer | |
| Kropp | RtBody | |
The operator is allowed to operate in manual mode.
| ManMode Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
Manual mode is selected.
| ManStatus Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ReduTransfer|State|Noedit | |
| Kropp | RtBody | |
Selected burner state in manual mode.
| Executing Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ReduTransfer | |
| Kropp | RtBody | |
Burner sequence control is active.
| PlcConnect Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | AttrRef | |
| Flags | ||
| Kropp | RtBody | |
The plc function object connected to this object. This attribute is set when the function object is connected from the plc editor by the connect function.
