Volume ABB
Attributes: Runtime \| Development \| System \| Template \| Detail C Binding: Struct \| Class \| Code ClassTree	INDEX NO INDEX

 Plc simulation object to ABB_ACS800_1

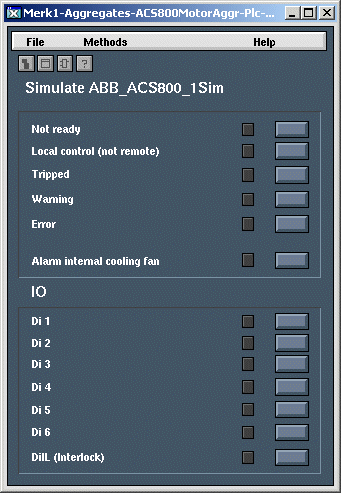

Object Graph


 Connect the function object to an object of class or subclass of
 ABB_ACS880_1.

See also

RtBody attributes pwr_sClass_ABB_ACS800_1Sim
AttrRef	PlcConnect
Boolean	OpSimReplaceFan
Boolean	OpSimTripped
Boolean	OpSimNotReady
Boolean	OpSimWarning
Boolean	OpSimError
Boolean	OpSimNotRemote
Boolean	OpSimDi1
Boolean	OpSimDi2
Boolean	OpSimDi3
Boolean	OpSimDi4
Boolean	OpSimDi5
Boolean	OpSimDi6
Boolean	OpSimDiIL

DevBody attributes
pwrs:Class-$PlcNode	PlcNode

GraphPlcNode
object_type	11
parameters[0]	0
parameters[1]	14
parameters[2]	0
parameters[3]	0
subwindows	1
subwindow_class[0]	pwrb:Class-WindowPlc
graphmethod	0 (standard, individual attributes)
graphindex	0
default_mask[0]	0
default_mask[1]	0
segname_annotation	1
compmethod	58
compindex	0
tracemethod	0
traceindex	0
connectmethod	26
executeordermethod	2
objname	ACS800_1Sim
graphname	ACS800_1Sim

Template Object

Attributes detail
