ABB Frequencyconverter ACC800 with crane macro (object created by DR).

Object Graph

Plc coding

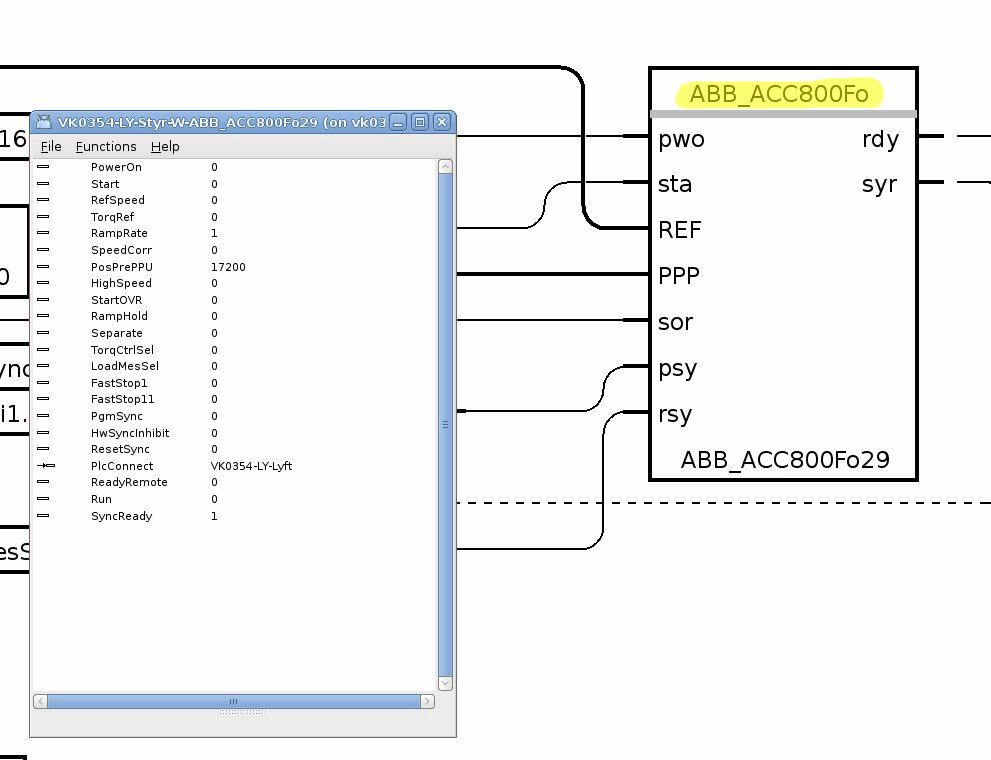

 For plc coding the function object ABB_ACC800Fo is used. The
 picture shows also the name of input/output pins (open object).

 Create a function object in the plc editor and connect it to the current
 object with the connect function.

Profibus

 For profibus connection with protocol PPO5 use the profibus Module object
 ABB_ACC_PPO5.
 Select this class in the Profibus Configurator, and connect the Io attribute of
 the ABB_ACC_PPO5 object to the ACC800 object with the connect function.

See also

• ABB_ACC800Fo
• ABB_ACC_PPO5
• Datasheet
