Class ABB_ACS880MotorAggrSim
|
||
|---|---|---|
| Redaktör | je | |
| Version | 1.0 | |
| Modified | 24-JUN-2013 11:11:45.02 | |
| Kod | PlcTemplate | |
Plc simulation object to ABB_ACS880MotorAggr or ABB_ACS880EplMotorAggr (also Pump and Fan).

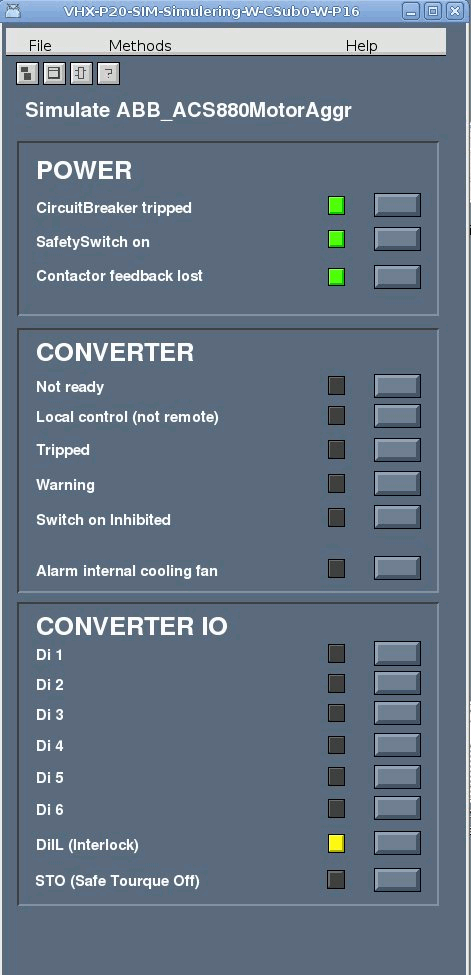

Object Graph
Connect the function object to an object of class or subclass of ABB_ACS880MotorAggr or ABB_ACS880EplMotorAggr.See also
| RtBody attributes pwr_sClass_ABB_ACS880MotorAggrSim | |||
|---|---|---|---|
| AttrRef | PlcConnect | Reference to the simulated object. Connect this object to ABB_ACS880MotorAggr (or Fan and Pump) in plant hierarchy. |
|
| Boolean | OpToggleCircuitBreaker | Simulate that the circuit breaker has detect over current. | |
| Boolean | OpToggleSafetySwitch | Simulate that the safety switch is off. | |
| Boolean | OpResetContactorFeedback | Simulate that the feedback from contactor is lost. | |
| Boolean | IndCircuitBreakerTripped | Indicator in object graph. | |
| Boolean | IndSafetySwitchOn | Indicator in object graph. | |
| Boolean | IndContactorFeedback | Indicator in object graph. | |
| DevBody attributes | |||
|---|---|---|---|
| pwrs:Class-$PlcNode | PlcNode | ||
| GraphPlcNode | |
|---|---|
| object_type | 11 |
| parameters[0] | 0 |
| parameters[1] | 7 |
| parameters[2] | 0 |
| parameters[3] | 0 |
| subwindows | 1 |
| subwindow_class[0] | pwrb:Class-WindowPlc |
| graphmethod | 0 (standard, individual attributes) |
| graphindex | 0 |
| default_mask[0] | 0 |
| default_mask[1] | 0 |
| segname_annotation | 1 |
| compmethod | 58 |
| compindex | 0 |
| tracemethod | 0 |
| traceindex | 0 |
| connectmethod | 26 |
| executeordermethod | 2 |
| objname | ACS880MotorSim |
| graphname | ACS880MotorSim |
| Template Object |
|---|
| PlcConnect Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | AttrRef | |
| Flags | ||
| Kropp | RtBody | |
Reference to the simulated object. Connect this object to ABB_ACS880MotorAggr (or Fan and Pump) in plant hierarchy.
| OpToggleCircuitBreaker Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| Kropp | RtBody | |
Simulate that the circuit breaker has detect over current.
| OpToggleSafetySwitch Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| Kropp | RtBody | |
Simulate that the safety switch is off.
| OpResetContactorFeedback Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| Kropp | RtBody | |
Simulate that the feedback from contactor is lost.
| IndCircuitBreakerTripped Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
Indicator in object graph.
| IndSafetySwitchOn Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
Indicator in object graph.
| IndContactorFeedback Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
Indicator in object graph.
| PlcNode Buffer | ||
|---|---|---|
| Klass | Buffer | |
| Typ | pwrs:Class-$PlcNode | |
| Flags | ||
| Kropp | DevBody | |
