| Volume ABB | |
| Attributes: Runtime | Development | System | Template | Detail C Binding: Struct | Class | Code ClassTree | INDEX NO INDEX |
|
Class ABB_ACS880_1Sim
|
||
|---|---|---|
| Redaktör | je | |
| Version | 1.0 | |
| Modified | 24-JUN-2013 11:11:20.51 | |
| Kod | PlcTemplate | |
Plc simulation object to profibus ABB_ACS80_1, powerlink ABB_ACS880_Epl_1 or profinet ABB_ACS880_Pn_1.

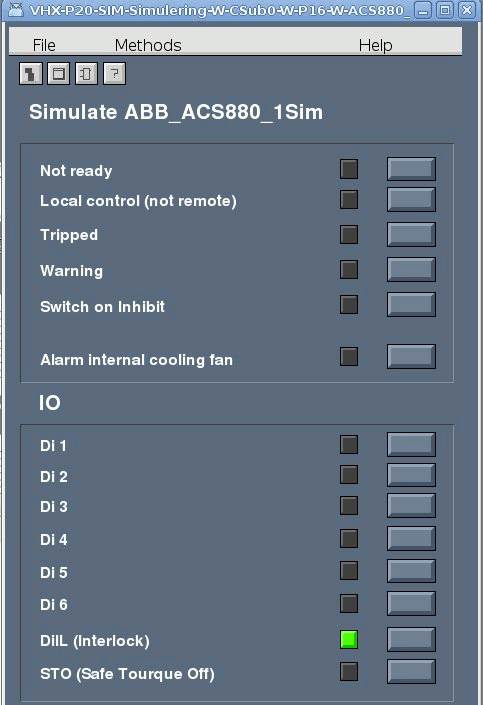

Object Graph
Connect the function object to an object of class or subclass of ABB_ACS880_1.See also
| RtBody attributes pwr_sClass_ABB_ACS880_1Sim | |||
|---|---|---|---|
| AttrRef | PlcConnect | Reference to the simulated object. Connect this object to ABB_ACS880_1 in plant hierarchy. |
|
| Boolean | OpSimReplaceFan | OpSimReplaceFan | Simulate that the internal fan needs maintenance. |
| Boolean | OpSimTripped | OpSimTripped | Simulate that the converter has tripped. |
| Boolean | OpSimNotReady | OpSimNotReady | Simulate that the converter is not ready. |
| Boolean | OpSimWarning | OpSimNotReady | Simulate that the converter has warning. |
| Boolean | OpSimInhibit | OpSimInhibit | Simulate that the converter has warning. |
| Boolean | OpSimNotRemote | OpSimNotRemote | Simulate that the converter is in internal local mode i.e. button remote/local on the converters panel is switched to local. |
| Boolean | OpSimDi1 | OpSimDi1 | Simulate that the converter IO input Di1 is true. |
| Boolean | OpSimDi2 | OpSimDi2 | Simulate that the converter IO input Di2 is true. |
| Boolean | OpSimDi3 | OpSimDi3 | Simulate that the converter IO input Di3 is true. |
| Boolean | OpSimDi4 | OpSimDi4 | Simulate that the converter IO input Di4 is true. |
| Boolean | OpSimDi5 | OpSimDi5 | Simulate that the converter IO input Di5 is true. |
| Boolean | OpSimDi6 | OpSimDi6 | Simulate that the converter IO input Di6 is true. |
| Boolean | OpSimDiIL | OpSimDiiL | Simulate that the converter IO input DIIL is true. |
| Boolean | OpSimSto | OpSimSto | Simulate that the converter IO input STO In1 and In2 is false, i.e. STO is activated. |
| DevBody attributes | |||
|---|---|---|---|
| pwrs:Class-$PlcNode | PlcNode | ||
| GraphPlcNode | |
|---|---|
| object_type | 11 |
| parameters[0] | 0 |
| parameters[1] | 15 |
| parameters[2] | 0 |
| parameters[3] | 0 |
| subwindows | 1 |
| subwindow_class[0] | pwrb:Class-WindowPlc |
| graphmethod | 0 (standard, individual attributes) |
| graphindex | 0 |
| default_mask[0] | 0 |
| default_mask[1] | 0 |
| segname_annotation | 1 |
| compmethod | 58 |
| compindex | 0 |
| tracemethod | 0 |
| traceindex | 0 |
| connectmethod | 26 |
| executeordermethod | 2 |
| objname | ACS880_1Sim |
| graphname | ACS880_1Sim |
| Template Object |
|---|
| PlcConnect Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | AttrRef | |
| Flags | ||
| Kropp | RtBody | |
Reference to the simulated object. Connect this object to ABB_ACS880_1 in plant hierarchy.
| OpSimReplaceFan Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimReplaceFan | |
| Kropp | RtBody | |
Simulate that the internal fan needs maintenance.
| OpSimTripped Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimTripped | |
| Kropp | RtBody | |
Simulate that the converter has tripped.
| OpSimNotReady Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimNotReady | |
| Kropp | RtBody | |
Simulate that the converter is not ready.
| OpSimWarning Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimNotReady | |
| Kropp | RtBody | |
Simulate that the converter has warning.
| OpSimInhibit Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimInhibit | |
| Kropp | RtBody | |
Simulate that the converter has warning.
| OpSimNotRemote Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimNotRemote | |
| Kropp | RtBody | |
Simulate that the converter is in internal local mode i.e. button remote/local on the converters panel is switched to local.
| OpSimDi1 Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimDi1 | |
| Kropp | RtBody | |
Simulate that the converter IO input Di1 is true.
| OpSimDi2 Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimDi2 | |
| Kropp | RtBody | |
Simulate that the converter IO input Di2 is true.
| OpSimDi3 Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimDi3 | |
| Kropp | RtBody | |
Simulate that the converter IO input Di3 is true.
| OpSimDi4 Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimDi4 | |
| Kropp | RtBody | |
Simulate that the converter IO input Di4 is true.
| OpSimDi5 Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimDi5 | |
| Kropp | RtBody | |
Simulate that the converter IO input Di5 is true.
| OpSimDi6 Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimDi6 | |
| Kropp | RtBody | |
Simulate that the converter IO input Di6 is true.
| OpSimDiIL Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimDiiL | |
| Kropp | RtBody | |
Simulate that the converter IO input DIIL is true.
| OpSimSto Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | State|Noedit | |
| GraphName | OpSimSto | |
| Kropp | RtBody | |
Simulate that the converter IO input STO In1 and In2 is false, i.e. STO is activated.
| PlcNode Buffer | ||
|---|---|---|
| Klass | Buffer | |
| Typ | pwrs:Class-$PlcNode | |
| Flags | ||
| Kropp | DevBody | |
