| Volume pwrs | |
| Attributes: Runtime | Development | System | Template | Detail C Binding: Struct | Class  ClassTree | INDEX NO INDEX |
Class GraphPlcNode
|
||
|---|---|---|
| Version | 1.0 | |
| Modified | 15-JAN-2025 13:23:33.00 | |
Description class for a Buffer in plc objects. The buffer contains graphic data used by the plc editor.
| SysBody attributes pwr_sClass_GraphPlcNode | |||
|---|---|---|---|
| UInt32 | object_type | Plceditor type for the class. | |
| Array of UInt32 | parameters | Number of input, intern and output attributes. | |
| UInt32 | subwindows | Number of plc subwindows. | |
| Array of ClassId | subwindow_class | Class of subwindows. | |
| Array of Float32 | sw_page_x | Not used. | |
| Array of Float32 | sw_page_y | Not used. | |
| UInt32 | graphmethod | Method for drawing the plc symbol. | |
| UInt32 | graphindex | Index used by the grapich method. | |
| Array of UInt32 | default_mask | The default input and output configuration. | |
| UInt32 | segname_annotation | Annotation in which the object name will be displayed. The common graph methods uses annotation 1 to display the object name. |
|
| Boolean | rtbody_annotation | Attributes whose value will be displayed in an annotation will be searched for in RtBody. |
|
| Boolean | devbody_annotation | Attributes whose value will be displayed in an annotation will be serach for in DevBody. |
|
| UInt32 | compmethod | Compilation method. Method that generates plc code for the object. | |
| UInt32 | compindex | Not used. | |
| UInt32 | tracemethod | Metod used by trace. | |
| UInt32 | traceindex | Not used. | |
| UInt32 | connectmethod | Method to connect the object to another object. | |
| UInt32 | executeordermethod | Method to calculate the execute order in the plc program. | |
| String16 | objname | Name for class displayed in the plc editor. | |
| String16 | graphname | Name for an object instance created in the plc editor. | |
| String32 | debugpar | Name of the attribute that trace uses to display the status of the object. | |
| Template Object | |
|---|---|
| object_type | 11 |
| object_type Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Plceditor type for the class.
| parameters Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Array of UInt32 | |
| Flags | ARRAY | ALWAYSWBL | |
| Elements | 4 | |
| Kropp | SysBody | |
Number of input, intern and output attributes. Element 0 : the number of input attributes. Element 1 : the number of intern attributes. Element 3 : the number of output attributes. Element 4 : not used.
| subwindows Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ||
| Kropp | SysBody | |
Number of plc subwindows.
| subwindow_class Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Array of ClassId | |
| Flags | ARRAY | |
| Elements | 2 | |
| Kropp | SysBody | |
Class of subwindows.
| sw_page_x Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Array of Float32 | |
| Flags | ARRAY | |
| Elements | 2 | |
| Kropp | SysBody | |
Not used.
| sw_page_y Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Array of Float32 | |
| Flags | ARRAY | |
| Elements | 2 | |
| Kropp | SysBody | |
Not used.
| graphmethod Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Method for drawing the plc symbol.

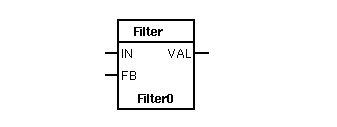

0: The ordinary symbol for an object. Symbol with
- header row containing class name,
- footer row containing object names,
- leadnames for all inputs and outputs.

1: Symbol for objects where the inputs and outputs doesn't have to
be specified.
Symbol without leadnames for inputs and outputs.

2: Equivalent with method 0, but equiped with an extra annotation
field above the footer.
3: Method for Text objects.
4: Method for objects with special design.
5: Method for a grafcet order.
6: Method for document objects.
7: Method for singlerow objects with maximum one input and one output.
Displays the class name and object name in the object.

8 and 9: This method uses method 7, 15 or 0 dependent on the number of
used inputs and outputs.
14: Method for singleline arithm objects.
15: Method for double row objects with maximum two inputs and two outputs.

| graphindex Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Index used by the grapich method.
| default_mask Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Array of UInt32 | |
| Flags | ARRAY | ALWAYSWBL | |
| Elements | 2 | |
| Kropp | SysBody | |
The default input and output configuration.
An array of bitmasks.
Element 0: mask for input attributes, if a bit is set, the corresponding
input will be displayed.
Element 1: mask for output attributes, if a bit is set, the corresponding
output will be displayed.
Element 2: mask for input attributes, if a bit is set, the corresponding
output will be inverted.
| segname_annotation Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Annotation in which the object name will be displayed. The common graph methods uses annotation 1 to display the object name.
| rtbody_annotation Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ||
| Kropp | SysBody | |
Attributes whose value will be displayed in an annotation will be searched for in RtBody.
| devbody_annotation Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | Boolean | |
| Flags | ||
| Kropp | SysBody | |
Attributes whose value will be displayed in an annotation will be serach for in DevBody.
| compmethod Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Compilation method. Method that generates plc code for the object. 2: Method for object without any plc code. 4: Method for an object with a standard function call. 5: Method for an object with a standard macro call. 58: Method for an object with template plc code in class definition.
| compindex Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Not used.
| tracemethod Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Metod used by trace.
| traceindex Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Not used.
| connectmethod Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Method to connect the object to another object. 0: No connect function.
| executeordermethod Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | UInt32 | |
| Flags | ALWAYSWBL | |
| Kropp | SysBody | |
Method to calculate the execute order in the plc program. 0: No executable code for this object. 2: Ordinary method for objects with executable code.
| objname Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | String16 | |
| Flags | ||
| Kropp | SysBody | |
Name for class displayed in the plc editor.
| graphname Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | String16 | |
| Flags | ||
| Kropp | SysBody | |
Name for an object instance created in the plc editor.
| debugpar Attribute | ||
|---|---|---|
| Klass | Attribute | |
| Typ | String32 | |
| Flags | ||
| Kropp | SysBody | |
Name of the attribute that trace uses to display the status of the object.
