Class CArea
|
||
|---|---|---|
| Version | 1.0 | |
| Modified | 15-JAN-2025 13:23:37.00 | |

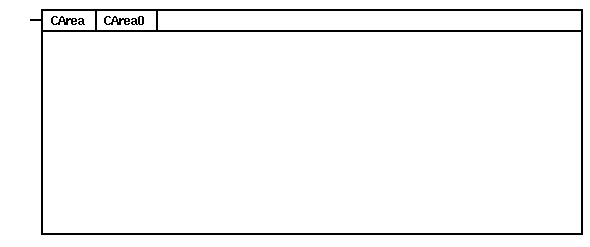

Conditional execution of objects located in an area.
The code in the area is, executed if, and only if, the logical input signal is TRUE. By means of the Attribute Editor the value of the input signal can be inverted. The sub-window may contain PLC objects without any known restrictions.
| RtBody attributes pwr_sClass_CArea | |||
|---|---|---|---|
| Boolean | in | in | Specifies whether the objects in the area will be executed or not. FALSE means no execution and TRUE means execution of the objects in the area. |
| DevBody attributes | |||
|---|---|---|---|
| Float32 | AreaWidth | Width of area. | |
| Float32 | AreaHeight | Height of area. | |
| PlcNode | PlcNode | ||
| GraphPlcNode | |
|---|---|
| object_type | 11 |
| parameters[0] | 1 |
| parameters[1] | 0 |
| parameters[2] | 0 |
| parameters[3] | 0 |
| graphmethod | 11 |
| graphindex | 7 |
| default_mask[0] | 1 |
| default_mask[1] | 0 |
| segname_annotation | 1 |
| compmethod | 61 |
| compindex | 0 |
| tracemethod | 2 |
| traceindex | 1 |
| executeordermethod | 2 |
| objname | CArea |
| graphname | CArea |
| debugpar | in |
| Template Object | |
|---|---|
| in | 0 |
| in Input | ||
|---|---|---|
| Klass | Input | |
| Typ | Boolean | |
| Flags | STATE | RTVIRTUAL | NOEDIT | |
| GraphName | in | |
| Kropp | RtBody | |
Specifies whether the objects in the area will be executed or not. FALSE means no execution and TRUE means execution of the objects in the area.
| AreaWidth Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Float32 | |
| Flags | ||
| Kropp | DevBody | |
Width of area.
| AreaHeight Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Float32 | |
| Flags | ||
| Kropp | DevBody | |
Height of area.
| PlcNode Buffer | ||
|---|---|---|
| Klass | Buffer | |
| Typ | PlcNode | |
| Flags | INVISIBLE | |
| Kropp | DevBody | |
