Volume BaseComponent
Attributes: Runtime \| Development \| System \| Template \| Detail C Binding: Struct \| Class \| Code ClassTree	INDEX NO INDEX

Class BaseValveIncrDecrSim
Version	1.0
Modified	27-OCT-2008 09:43:01.19
Kod	PlcTemplate

 Plc simulation object to BaseValveIncrDecr.

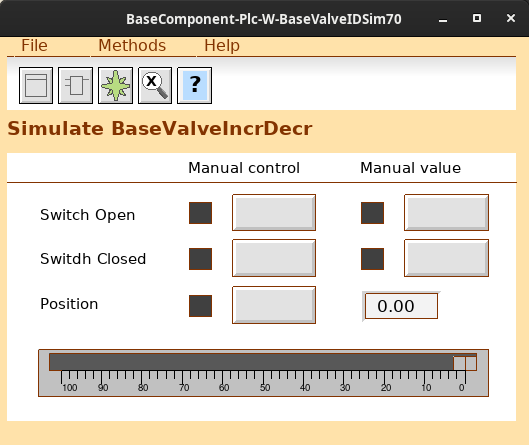

Object Graph


 Connect the function object to an object of class or subclass of
 BaseValveIncrDecr.

See also

RtBody attributes pwr_sClass_BaseValveIncrDecrSim
AttrRef	PlcConnect
Boolean	ManSwitchOpen
Boolean	ManSwitchOpenValue
Boolean	ManSwitchClosed
Boolean	ManSwitchClosedValue
Boolean	PosDiffError
Boolean	ManPosition
Float32	ManPositionValue

DevBody attributes
pwrs:Class-$PlcNode	PlcNode

GraphPlcNode
object_type	11
parameters[0]	0
parameters[1]	0
parameters[2]	0
parameters[3]	0
subwindows	1
subwindow_class[0]	pwrb:Class-WindowPlc
graphmethod	0 (standard, individual attributes)
graphindex	0
default_mask[0]	0
default_mask[1]	0
segname_annotation	1
compmethod	58
compindex	0
tracemethod	0
traceindex	0
connectmethod	26
executeordermethod	2
objname	BaseValveIDSim
graphname	BaseValveIDSim

Template Object

Attributes detail

ManSwitchClosedValue Intern
Klass	Intern
Typ	Boolean
Flags
Kropp	RtBody
