Class BaseMotorIncrDecrAggrSim
|
||
|---|---|---|
| Version | 1.0 | |
| Modified | 05-DEC-2005 10:11:26.28 | |
| Kod | PlcTemplate | |
Plc simulation object to BaseMotorIncrDecrAttr.

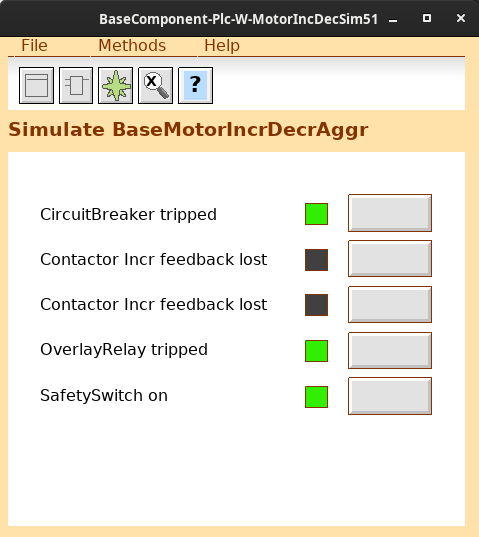

Object Graph
Connect the function object to an object of class or subclass of BaseMotorIncrDecrAggr.See also
| DevBody attributes | |||
|---|---|---|---|
| pwrs:Class-$PlcNode | PlcNode | ||
| GraphPlcNode | |
|---|---|
| object_type | 11 |
| parameters[0] | 0 |
| parameters[1] | 13 |
| parameters[2] | 0 |
| parameters[3] | 0 |
| subwindows | 1 |
| subwindow_class[0] | pwrb:Class-WindowPlc |
| graphmethod | 0 (standard, individual attributes) |
| graphindex | 0 |
| default_mask[0] | 0 |
| default_mask[1] | 0 |
| segname_annotation | 1 |
| compmethod | 58 |
| compindex | 0 |
| tracemethod | 0 |
| traceindex | 0 |
| connectmethod | 26 |
| executeordermethod | 2 |
| objname | MotorIncDecSim |
| graphname | MotorIncDecSim |
| Template Object |
|---|
| PlcConnect Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | AttrRef | |
| Flags | ||
| Kropp | RtBody | |
The main object connected to this object. This attribute is set when the function object is connected from the plc editor by the connect function.
| OpToggleCircuitBreaker Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| OpToggleSafetySwitch Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| OpToggleOverloadRelay Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| OpResetContactorFeedbackIncr Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| OpResetContactorFeedbackDecr Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| IndCircuitBreakerTripped Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| IndSafetySwitchOn Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| IndOverloadRelayTripped Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| IndContactorFeedbackIncr Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| IndContactorFeedbackDecr Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| IndLimitSwitchIncr Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| IndLimitSwitchDecr Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| PlcNode Buffer | ||
|---|---|---|
| Klass | Buffer | |
| Typ | pwrs:Class-$PlcNode | |
| Flags | ||
| Kropp | DevBody | |
