| Volume BaseComponent | |
| Attributes: Runtime | Development | System | Template | Detail C Binding: Struct | Class | Code ClassTree | INDEX NO INDEX |
|
Class BaseContactorSim
|
||
|---|---|---|
| Version | 1.0 | |
| Modified | 30-NOV-2005 08:08:00.96 | |
| Kod | PlcTemplate | |
Plc simulation object to BaseContactor.

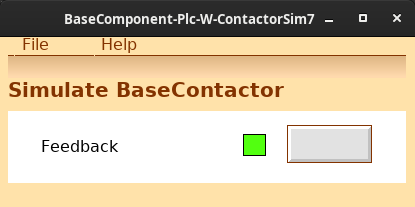

Object Graph
Connect the function object to an object of class or subclass of BaseContactor.See also
| RtBody attributes pwr_sClass_BaseContactorSim | |||
|---|---|---|---|
| AttrRef | PlcConnect | Used by the connect method. Reference to the main sensor object. | |
| Boolean | IndContactorFeedback | ||
| Boolean | OpResetContactorFeedback | ||
| DevBody attributes | |||
|---|---|---|---|
| pwrs:Class-$PlcNode | PlcNode | ||
| GraphPlcNode | |
|---|---|
| object_type | 11 |
| parameters[0] | 0 |
| parameters[1] | 3 |
| parameters[2] | 0 |
| parameters[3] | 0 |
| subwindows | 1 |
| subwindow_class[0] | pwrb:Class-WindowPlc |
| graphmethod | 0 (standard, individual attributes) |
| graphindex | 0 |
| default_mask[0] | 0 |
| default_mask[1] | 0 |
| segname_annotation | 1 |
| compmethod | 58 |
| compindex | 0 |
| tracemethod | 0 |
| traceindex | 0 |
| connectmethod | 26 |
| executeordermethod | 2 |
| objname | ContactorSim |
| graphname | ContactorSim |
| Template Object |
|---|
| PlcConnect Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | AttrRef | |
| Flags | ||
| Kropp | RtBody | |
Used by the connect method. Reference to the main sensor object.
| IndContactorFeedback Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | Noedit | |
| Kropp | RtBody | |
| OpResetContactorFeedback Intern | ||
|---|---|---|
| Klass | Intern | |
| Typ | Boolean | |
| Flags | ||
| Kropp | RtBody | |
| PlcNode Buffer | ||
|---|---|---|
| Klass | Buffer | |
| Typ | pwrs:Class-$PlcNode | |
| Flags | ||
| Kropp | DevBody | |
