Volume BaseComponent
Attributes: Runtime \| Development \| System \| Template \| Detail C Binding: Struct \| Class \| Code ClassTree	INDEX NO INDEX

 Plc simulation object to BaseCValve.

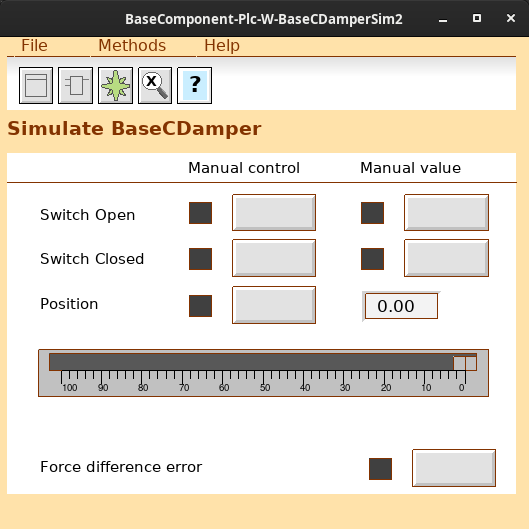

Object Graph


 Connect the function object to an object of class or subclass of
 BaseCDamper.

See also

RtBody attributes pwr_sClass_BaseCDamperSim
AttrRef	PlcConnect	Used by the connect method. Reference to the main sensor object.
Boolean	ManSwitchOpen
Boolean	ManSwitchOpenValue
Boolean	ManSwitchClosed
Boolean	ManSwitchClosedValue
Boolean	PosDiffError
Boolean	ManPosition
Float32	ManPositionValue

DevBody attributes
pwrs:Class-$PlcNode	PlcNode

GraphPlcNode
object_type	11
parameters[0]	0
parameters[1]	0
parameters[2]	0
parameters[3]	0
subwindows	1
subwindow_class[0]	pwrb:Class-WindowPlc
graphmethod	0 (standard, individual attributes)
graphindex	0
default_mask[0]	0
default_mask[1]	0
segname_annotation	1
compmethod	58
compindex	0
tracemethod	0
traceindex	0
connectmethod	26
executeordermethod	2
objname	BaseCDamperSim
graphname	BaseCDamperSim

Template Object

Attributes detail

 Used by the connect method. Reference to the main sensor object.

ManSwitchClosedValue Intern
Klass	Intern
Typ	Boolean
Flags
Kropp	RtBody
