Volume ABB
Attributes: Runtime \| Development \| System \| Template \| Detail C Binding: Struct \| Class \| Code ClassTree	INDEX NO INDEX

 Plc simulation object to ABB_ACS800MotorAggr.

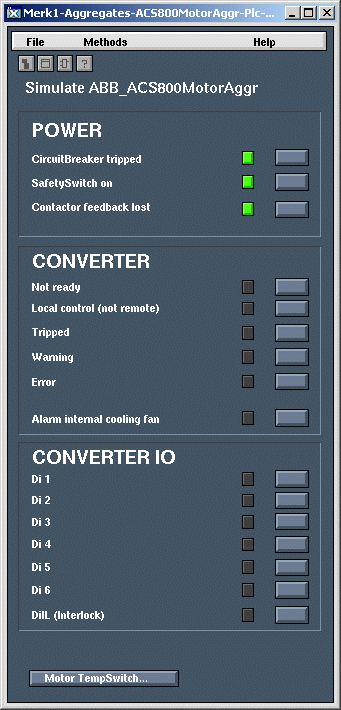

Object Graph


 Connect the function object to an object of class or subclass of
 ABB_ACS800MotorAggr.

See also

RtBody attributes pwr_sClass_ABB_ACS800MotorAggrSim
AttrRef	PlcConnect
Boolean	OpToggleCircuitBreaker
Boolean	OpToggleSafetySwitch
Boolean	OpResetContactorFeedback
Boolean	IndCircuitBreakerTripped
Boolean	IndSafetySwitchOn
Boolean	IndContactorFeedback

DevBody attributes
pwrs:Class-$PlcNode	PlcNode

GraphPlcNode
object_type	11
parameters[0]	0
parameters[1]	7
parameters[2]	0
parameters[3]	0
subwindows	1
subwindow_class[0]	pwrb:Class-WindowPlc
graphmethod	0 (standard, individual attributes)
graphindex	0
default_mask[0]	0
default_mask[1]	0
segname_annotation	1
compmethod	58
compindex	0
tracemethod	0
traceindex	0
connectmethod	26
executeordermethod	2
objname	ACS800MotorSim
graphname	ACS800MotorSim

Template Object

Attributes detail

OpToggleCircuitBreaker Intern
Klass	Intern
Typ	Boolean
Flags	State\|Noedit
Kropp	RtBody

OpToggleSafetySwitch Intern
Klass	Intern
Typ	Boolean
Flags	State\|Noedit
Kropp	RtBody

OpResetContactorFeedback Intern
Klass	Intern
Typ	Boolean
Flags	State\|Noedit
Kropp	RtBody

IndCircuitBreakerTripped Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody

IndContactorFeedback Intern
Klass	Intern
Typ	Boolean
Flags	Noedit
Kropp	RtBody
