Class DsFastConf![]() |
||
---|---|---|
Version | 1.0 | |
Modified | 15-JAN-2025 13:23:36.00 |

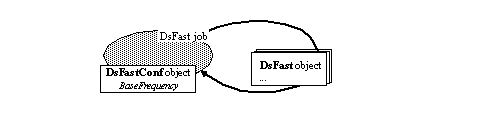

Specifies attributes of a single DsFast. In every node where fast graphs should be stored there has to be a DsFast job to search through the local DsFast objects.
Hints

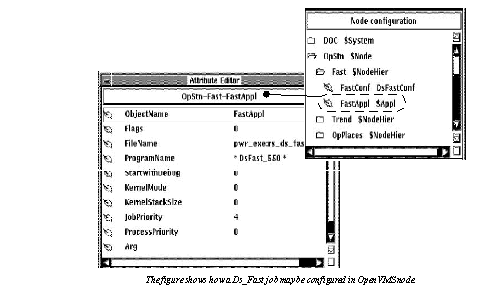

The DsFastConf object is placed below the $Node object. If a Ds_Fast job is loaded to a node, which has no DsFastConf object, it will execute with 10 Hz. A Ds_Fast job has to be loaded and started in each node, where data for fast graphs should be stored.

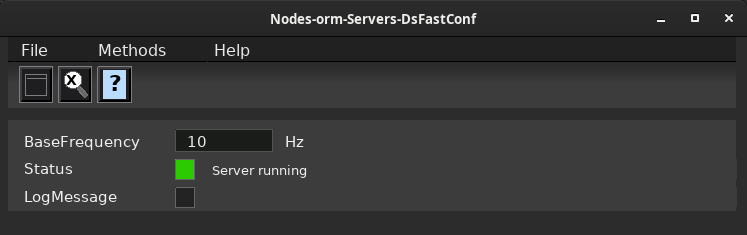

Object graph
See Also
RtBody attributes pwr_sClass_DsFastConf | |||
---|---|---|---|
UInt32 | BaseFrequency | The frequency of the DsFast job in Hz. 1 <= BaseFrequency <= 50. The BaseFrequency attribute in every DsFast object belonging to the same node as the DsFastConf are assigned the value of the attribute! Digital signals and pulse counter signals are handled in PLC programs which are working with different cycle times. This times are always an integer multiple of 20 ms, which in the frequency plane means that only some discrete frequencies are allowed; e.g. 50 Hz, 25 Hz, .... Local analog signals are handled in a time specified by IOHandler. |
Template Object | |
---|---|
BaseFrequency | 10 |
BaseFrequency Attribute | ||
---|---|---|
Class | Attribute | |
Type | UInt32 | |
Flags | ||
Body | RtBody |
The frequency of the DsFast job in Hz. 1 <= BaseFrequency <= 50. The BaseFrequency attribute in every DsFast object belonging to the same node as the DsFastConf are assigned the value of the attribute! Digital signals and pulse counter signals are handled in PLC programs which are working with different cycle times. This times are always an integer multiple of 20 ms, which in the frequency plane means that only some discrete frequencies are allowed; e.g. 50 Hz, 25 Hz, .... Local analog signals are handled in a time specified by IOHandler.
