| Volume BaseComponent | |
| Attributes: Runtime | Development | System | Template | Detail C Binding: Struct | Class | Code ClassTree | INDEX NO INDEX |
|
Class BaseSensorSim
|
||
|---|---|---|
| Version | 1.0 | |
| Modified | 04-OCT-2005 14:04:09.72 | |
| Code | PlcTemplate | |
Plc simulation object to BaseSensor.

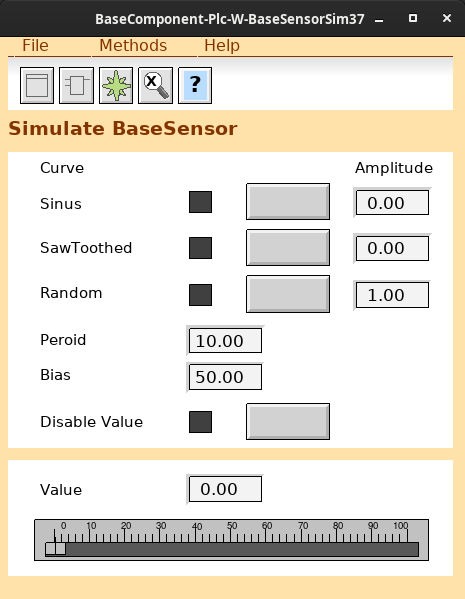

Object Graph
The sensor value is the sum of - the Value input, which can be connected in the plc, or given an an initial value and modified by the slider in the object graph. - a bias component. - a sinus component. - a sawtooth component. - a random component.
Connect the function object to an object of class or subclass of BaseSensor.See also
| RtBody attributes pwr_sClass_BaseSensorSim | |||
|---|---|---|---|
| Float32 | Value | ||
| Boolean | SinusCurve | If true, the sinus component is added to the simulated value. | |
| Boolean | SawToothedCurve | If true, the sawtooth component is added to the simulated value. | |
| Boolean | RandomCurve | If true, the random component is added to the simulated value. | |
| Boolean | DisableValue | If true, the simulated value is set to zero. | |
| Float32 | Period | Period of sinus and saw toothed component. | |
| Float32 | Bias | Value of bias component. | |
| Float32 | SinusAmplitude | Amplitude of sinus component. | |
| Float32 | SawToothedAmplitude | Amplitude of saw toothed component. | |
| Float32 | RandomAmplitude | Amplitude of random component. | |
| AttrRef | PlcConnect | Used by the connect method. Reference to the main sensor object. | |
| DevBody attributes | |||
|---|---|---|---|
| pwrs:Class-$PlcNode | PlcNode | ||
| GraphPlcNode | |
|---|---|
| object_type | 11 |
| parameters[0] | 1 |
| parameters[1] | 10 |
| parameters[2] | 0 |
| parameters[3] | 0 |
| subwindows | 1 |
| subwindow_class[0] | pwrb:Class-WindowPlc |
| graphmethod | 0 (standard, individual attributes) |
| graphindex | 0 |
| default_mask[0] | 0 |
| default_mask[1] | 0 |
| segname_annotation | 1 |
| compmethod | 58 |
| compindex | 0 |
| tracemethod | 0 |
| traceindex | 0 |
| connectmethod | 26 |
| executeordermethod | 2 |
| objname | BaseSensorSim |
| graphname | BaseSensorSim |
| Template Object | |
|---|---|
| Period | 1.000000e+01 |
| Bias | 5.000000e+01 |
| RandomAmplitude | 1.000000e+00 |
| Value Input | ||
|---|---|---|
| Class | Input | |
| Type | Float32 | |
| Flags | Noinvert | |
| Body | RtBody | |
| SinusCurve Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Boolean | |
| Flags | ||
| Body | RtBody | |
If true, the sinus component is added to the simulated value.
| SawToothedCurve Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Boolean | |
| Flags | ||
| Body | RtBody | |
If true, the sawtooth component is added to the simulated value.
| RandomCurve Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Boolean | |
| Flags | ||
| Body | RtBody | |
If true, the random component is added to the simulated value.
| DisableValue Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Boolean | |
| Flags | ||
| Body | RtBody | |
If true, the simulated value is set to zero.
| Period Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | RtBody | |
Period of sinus and saw toothed component.
| Bias Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | RtBody | |
Value of bias component.
| SinusAmplitude Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | RtBody | |
Amplitude of sinus component.
| SawToothedAmplitude Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | RtBody | |
Amplitude of saw toothed component.
| RandomAmplitude Intern | ||
|---|---|---|
| Class | Intern | |
| Type | Float32 | |
| Flags | ||
| Body | RtBody | |
Amplitude of random component.
| PlcConnect Intern | ||
|---|---|---|
| Class | Intern | |
| Type | AttrRef | |
| Flags | ||
| Body | RtBody | |
Used by the connect method. Reference to the main sensor object.
| PlcNode Buffer | ||
|---|---|---|
| Class | Buffer | |
| Type | pwrs:Class-$PlcNode | |
| Flags | ||
| Body | DevBody | |
